Appendix 6c) Primary Figure code (REQURIED Script & Image)

The assignment

For you final project you need to display a/the key result of your study as a figure using R. Additinally, write an appropriate and detailed caption for it. Include the code for making the plot; you can include it in your main analysis script – clearly labled – or put it in a sperate file which loads the data and does what after data prep or modeling necessary for the pot. Additional annotations can be made in PowerPoint or another program if necessary. The final plot should be saved as a .ppt slide or image file (.jpeg).

In this the mammalsmilkRA repository I have split up the analysis into several subscripts:

analysis
diagnostics
figure

These can be combined if you want.

How do I make a polished plot?

A final, publication-worth plot should have

x and y axes labled
units labled as appropriate
transformations of varibales indicated
raw-data or distributional information presented whenever possible (scatterplot, boxplot, violoin plot, boxplot with raw data, dotplot)
data coded with colors and shapes whenever possible
information about the statistical model or inference whenever possible (regression lines, p-values, etc)
Means and regression lines should have error bars/error bands
Nice additions are indications of sample size (“N = …”), what error bars are (“Error bars = …”), what the regression equation is, reference lines

A good caption/legend should be a suscint but stand-alone summary of the data and model. Ideally, if a person looked at just the plot and the caption they should have a pretty good idea of how to interpret it even if they don’t have the rest of the paper.

Good information to include in a caption include

A one-sentence summary of what the plot is
Objects, organisms, entities that data were collected on. For example, in ecological studies taxonomic information about the organisms studied.
Sample size (if not included within the plot)
What confidence intervals are (if not included within the plot)

The ggpubr package has a large number of arguements and functions for making plots look cool. Information on ggpubr can be found [here.] (http://www.sthda.com/english/wiki/ggpubr-create-easily-publication-ready-plots)

Below are examples of plots for

regression analyses: scatter plot with regression line
1-way ANOVA

Preliminaries

Load packages

library(dplyr)  # for exploratory analyses
library(ggpubr) # plotting using ggplto2
library(cowplot)
library(lme4)
library(arm)
library(stringr)
library(bbmle)
library(plotrix) ##std.error function for SE
library(psych)
library(here)

# Functions
library(sjPlot)
library(sjlabelled)
library(sjmisc)

Load data in R

file. <- "Appendix-2-Analysis-Data_mammalsmilkRA.csv"
path. <- here("/inst/extdata/",file.)

milk <- read.csv(path., skip = 3)


genus_spp_subspp_mat <- milk$spp %>% str_split_fixed(" ", n = 3)

milk$genus <- genus_spp_subspp_mat[,1]

milk$fat.log <- log(milk$fat)
milk$mass.fem.log <- log(milk$mass.fem)

A polished plot for regression

The model

summary(lm(fat.log ~ mass.fem.log,
           data  = milk))
#>
#> Call:
#> lm(formula = fat.log ~ mass.fem.log, data = milk)
#>
#> Residuals:
#>     Min      1Q  Median      3Q     Max
#> -3.8711 -0.6374 -0.0243  0.7396  1.8717
#>
#> Coefficients:
#>              Estimate Std. Error t value Pr(>|t|)
#> (Intercept)   1.95288    0.26550   7.355 2.02e-11 ***
#> mass.fem.log  0.02255    0.02734   0.825    0.411
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error: 1.053 on 128 degrees of freedom
#> Multiple R-squared:  0.005287,   Adjusted R-squared:  -0.002484
#> F-statistic: 0.6804 on 1 and 128 DF,  p-value: 0.411

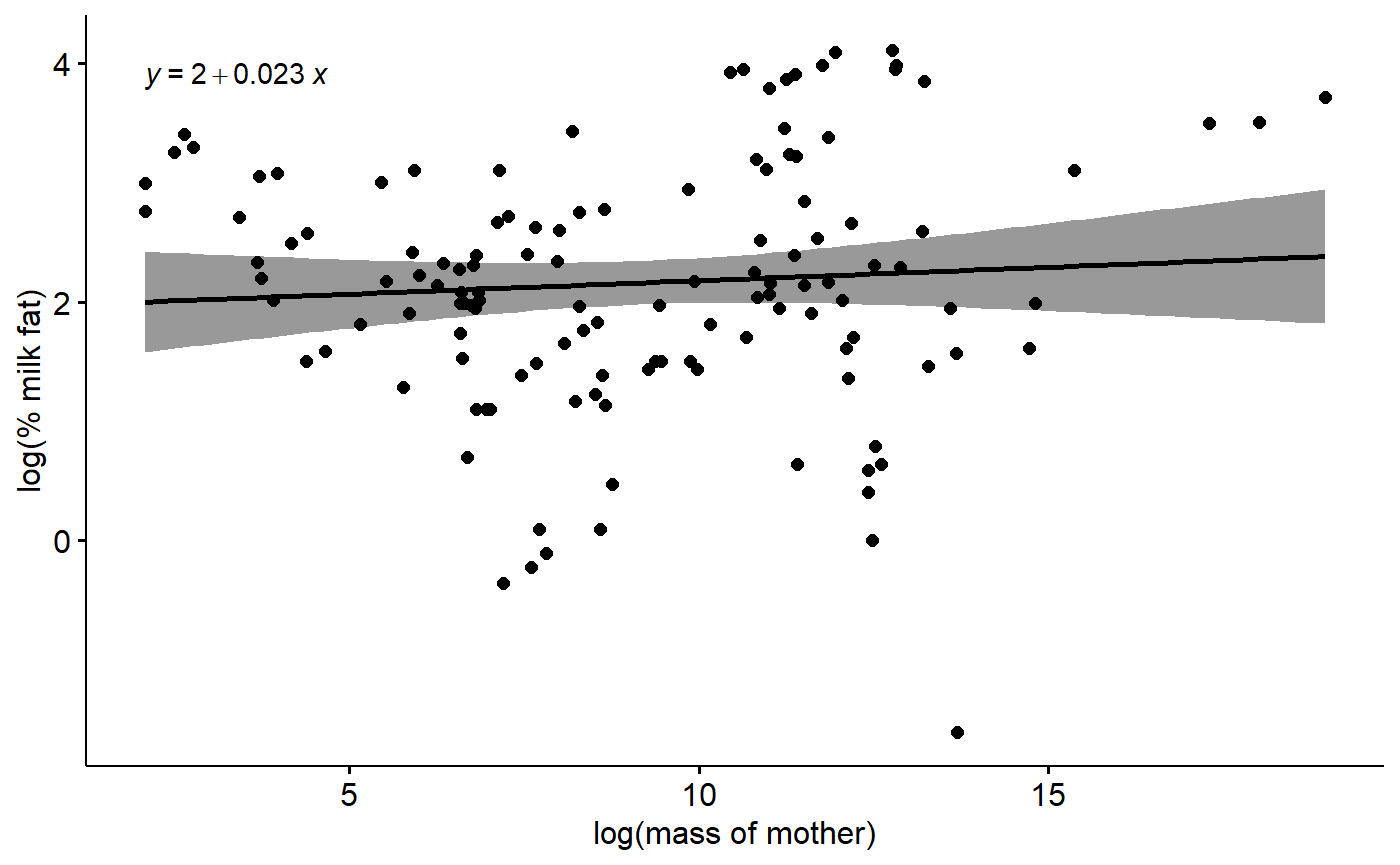

The plot

ggscatter(data = milk,
          y = "fat.log",
          x = "mass.fem.log",
          xlab = "log(mass of mother)",
          ylab = "log(% milk fat)",
          add = "reg.line",
          conf.int = T) +
  stat_regline_equation()

Additionally annotations could include p-value for slope of regression line, R^2 value, sample size. I have included these instead in teh caption.

A caption

Relationship between maternal mass (grams) and percent milk fat for 130 mammals fit using linear regression with no phylogenetic correction. Both axes are natural-log transformed. P = 0.41, R^2 = 0.005. Error bands is a 95% confidence interval.

A polished plot for 1-way ANOVA

There are 3 diet categories.

summary(milk$diet)
#> carnivore herbivore  omnivore
#>        32        61        37

We could do a 1-way ANOVA to test for differences between these 3 categories, ignoring phylogency, size, and any other ccovarites.

First a standard model of log-milk fat versus mammal diet.

m.diet <- lm(fat.log ~ diet,
             data = milk)

coef(summary(m.diet))
#>                Estimate Std. Error   t value     Pr(>|t|)
#> (Intercept)    3.299988  0.1464421 22.534421 3.318210e-46
#> dietherbivore -1.483205  0.1808184 -8.202733 2.233413e-13
#> dietomnivore  -1.566369  0.1999814 -7.832572 1.649622e-12

The above model gives us an intercept (“(Intercept)”) term and 2 effect sizes. R defaults to setting the intercept alphabetically, so carnivores are set as the intercept. The effect size “dietherbivore” is the difference between the intercept and herbivores, that is, the difference between carnviores and herbivores. The “dietomnivore” effect sizes is the diference between the intercept and ominivores.

We can calcualte the means for all three groups directly like this using a “means model”

m.diet.means <- lm(fat.log ~ - 1 + diet,
             data = milk)

coef(summary(m.diet.means))
#>               Estimate Std. Error  t value     Pr(>|t|)
#> dietcarnivore 3.299988  0.1464421 22.53442 3.318210e-46
#> dietherbivore 1.816783  0.1060660 17.12881 8.223522e-35
#> dietomnivore  1.733619  0.1361884 12.72957 1.962367e-24

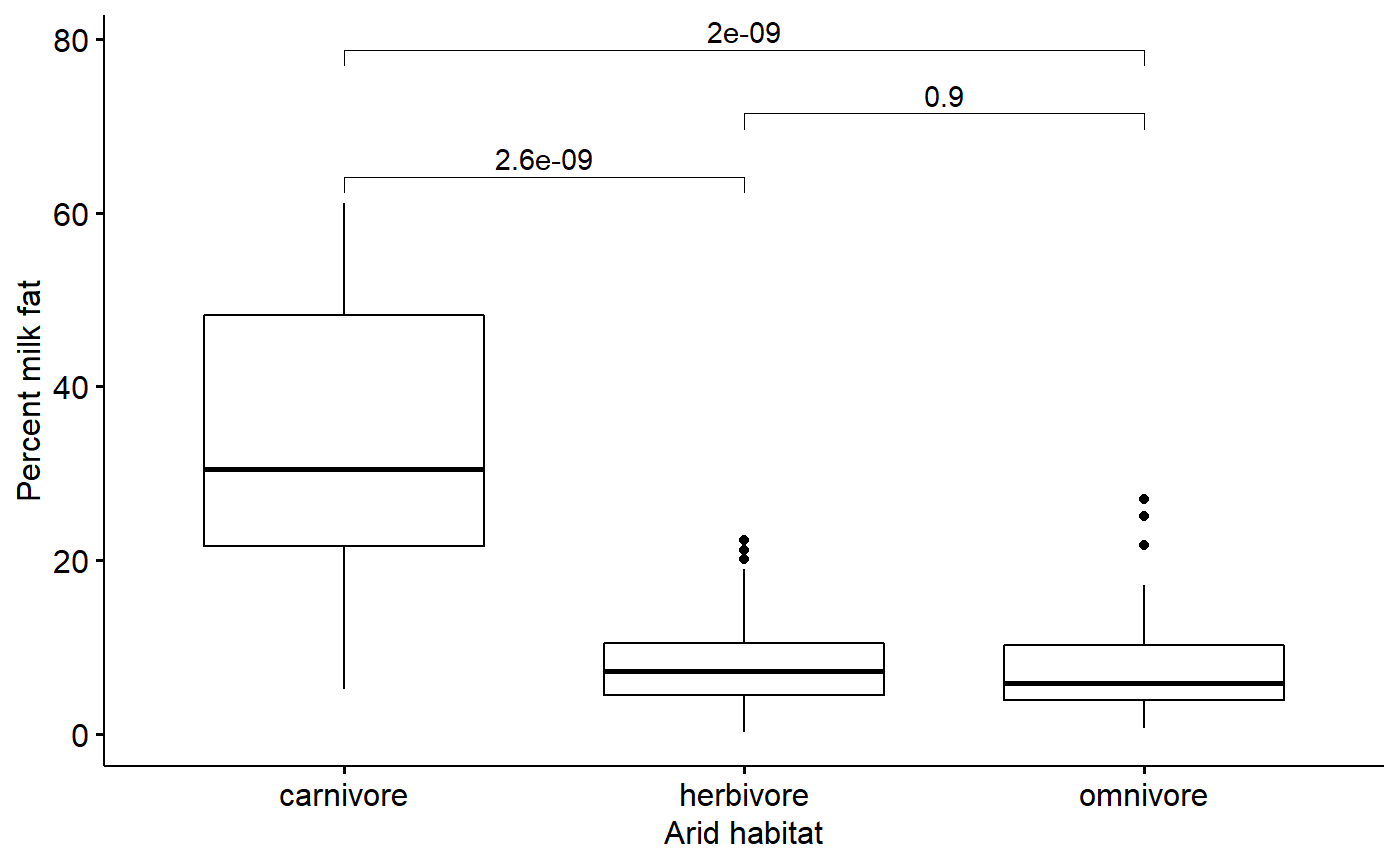

my_comparisons <- list(
  c("carnivore", "herbivore"),
  c("herbivore", "omnivore"),
  c("carnivore", "omnivore") )

ggboxplot(data = milk,
                  y = "fat",
                  x = "diet",
                  desc_stat = "mean_ci",
                  xlab = "Arid habitat",
                  ylab = "Percent milk fat") +
  stat_compare_means(method = "t.test",
                     comparisons = my_comparisons)

We can get confidence intervals for each of these means like this:

confint(m.diet.means)
#>                  2.5 %   97.5 %
#> dietcarnivore 3.010206 3.589771
#> dietherbivore 1.606898 2.026669
#> dietomnivore  1.464127 2.003111

#plot_model(m.diet)

#visreg(m.diet)

A polished plot for a t-test

For information on ggpubr and adding p-values using stat_compare_means() see here.

The t-test we are running

t.test(fat ~ arid, data = milk)
#>
#>  Welch Two Sample t-test
#>
#> data:  fat by arid
#> t = 4.0816, df = 127.95, p-value = 7.826e-05
#> alternative hypothesis: true difference in means is not equal to 0
#> 95 percent confidence interval:
#>   4.146069 11.948437
#> sample estimates:
#>  mean in group no mean in group yes
#>         16.401099          8.353846

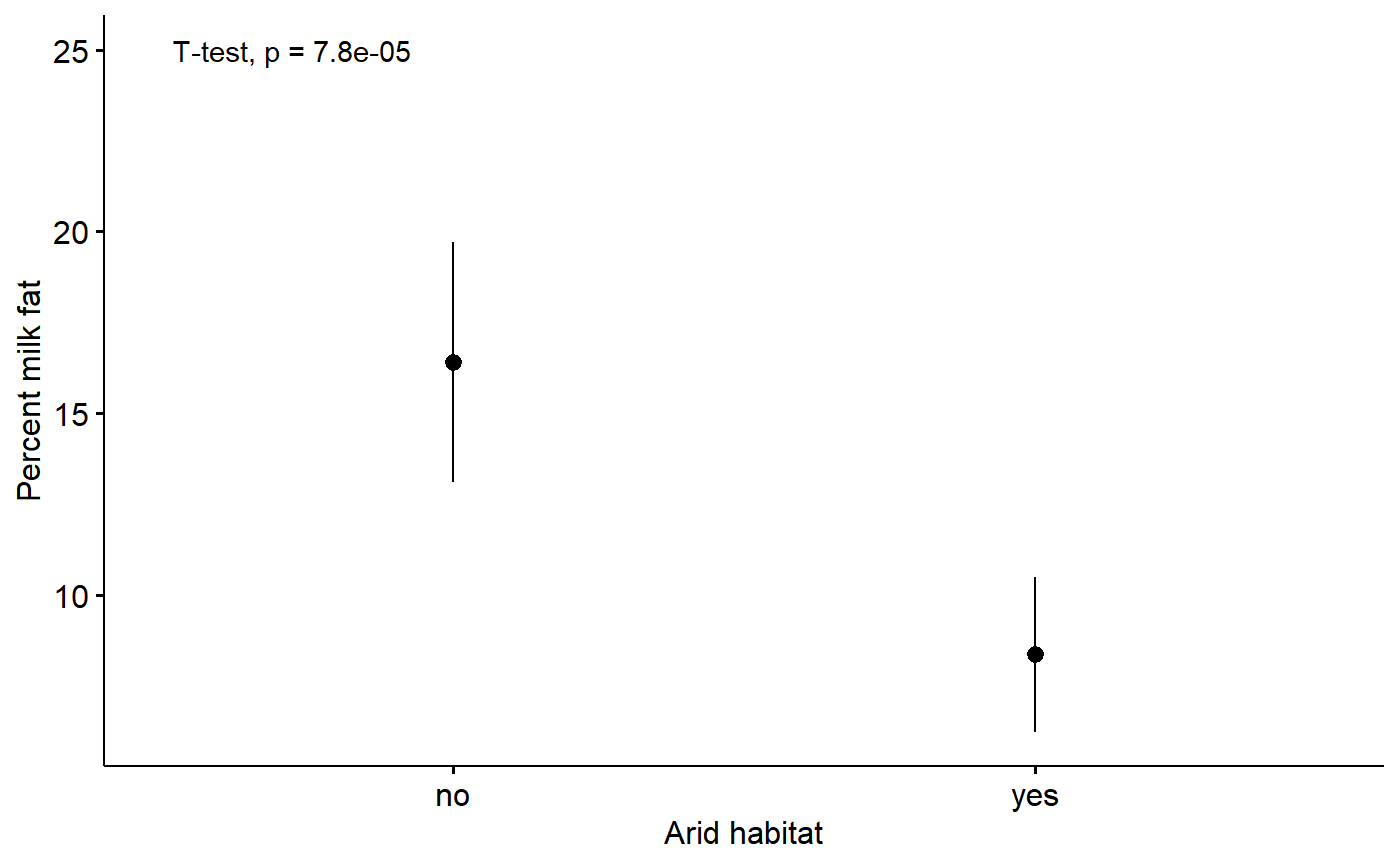

Plot with p-values from t-test.

ggerrorplot(data = milk,
                  y = "fat",
                  x = "arid",
                  desc_stat = "mean_ci",
                  xlab = "Arid habitat",
                  ylab = "Percent milk fat") +
  stat_compare_means(method = "t.test",
                     label.y = 25,
                     label.x = 0.6)
